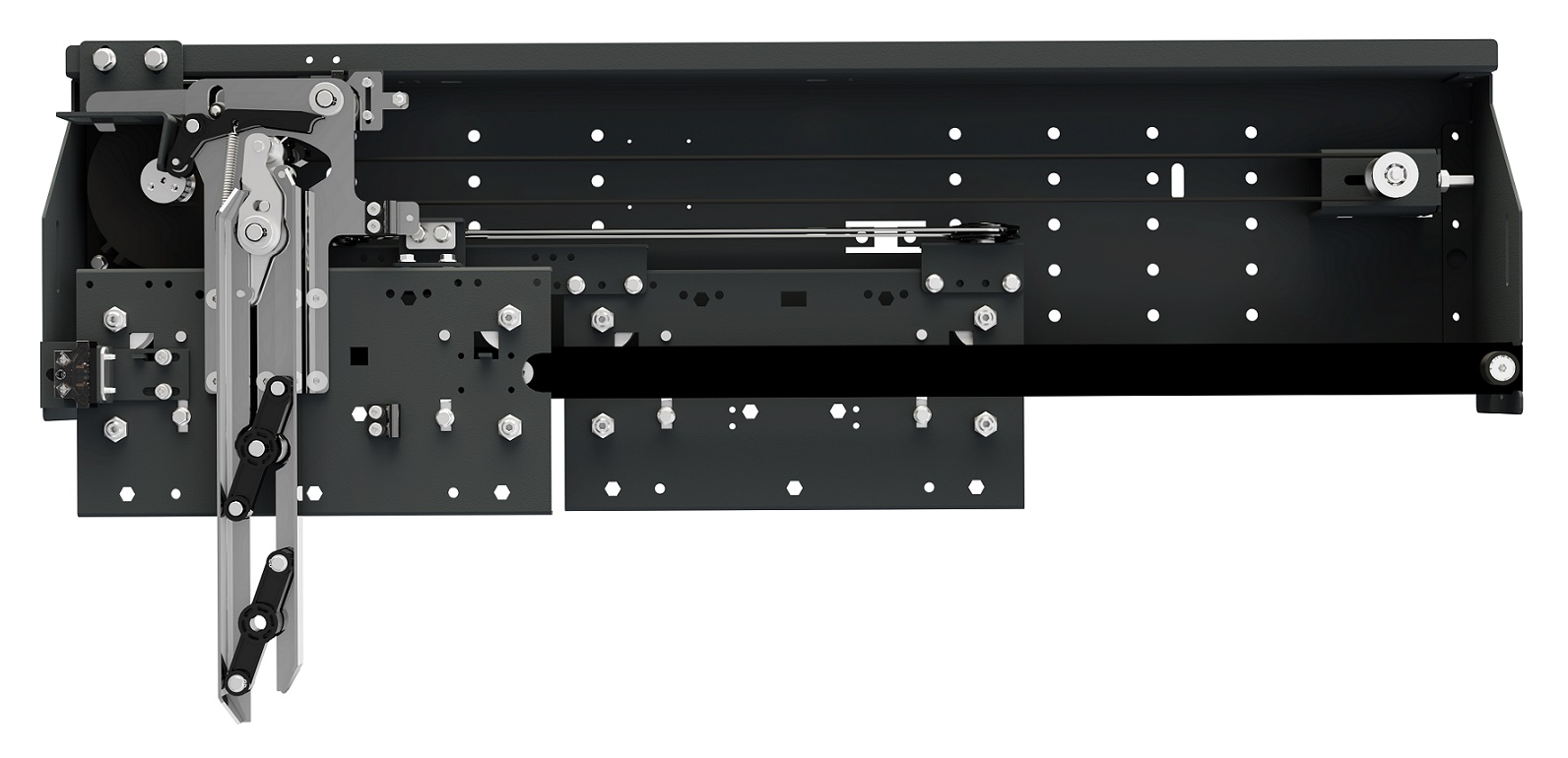

LATERAL MULTICAR CAR DOORS

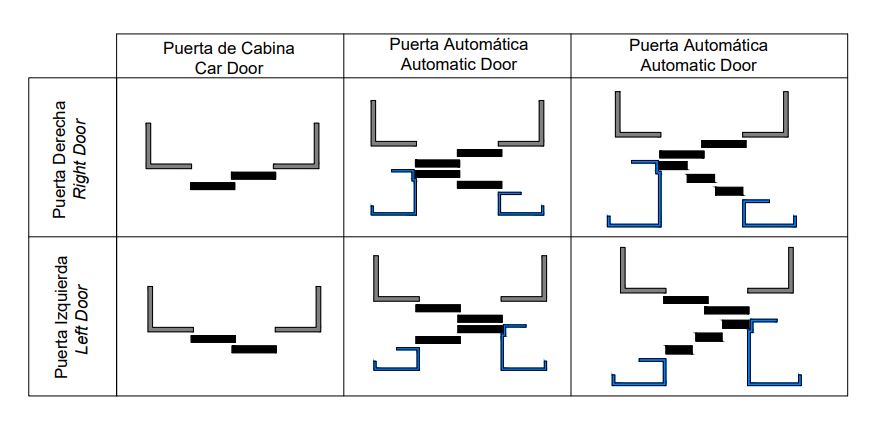

DIAGRAM
PRODUCTION RANGE
Clear Opening | Clear Height |
||
| Minimum | Maximum | Minimum | Maximum |
| 700 | 1300 | 2000 | 2300 |
CAR DOOR CERTIFICATE
Detail of Certificate | Standards of reference | Certificate No |
| Pendulum test | EN81-20 | EN81-50 | NL16-400-1002-061-18 |
| Lock mechanism | EN81-20 | EN81-50 | 20-IS-0536-TAT-23-COC-4532 |

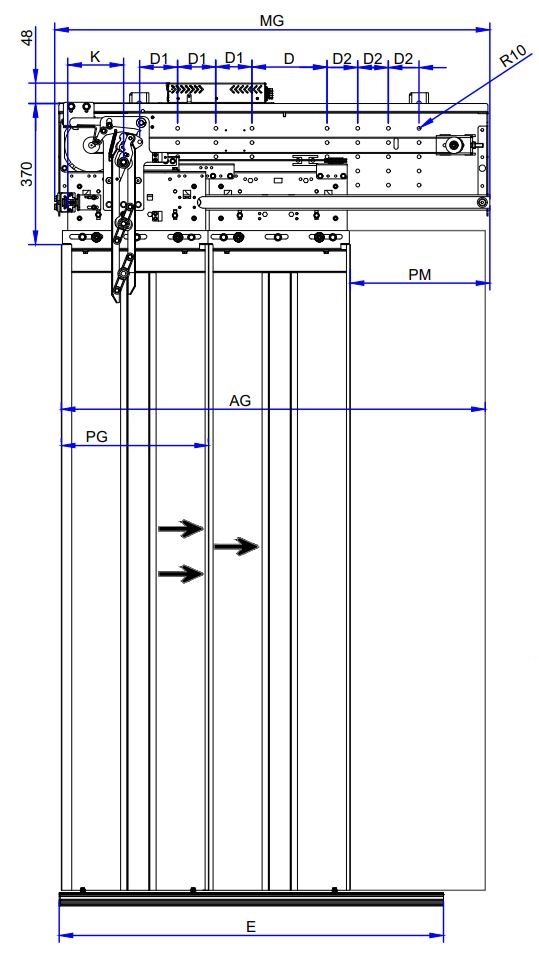

PLANE
FEATURES
| Clear Opening | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 |
| MG | 1135 | 1285 | 1435 | 1585 | 1735 | 1885 | 2035 |
| K | 138,5 | 138,5 | 138,5 | 138,5 | 138,5 | 138,5 | 138,5 |
| PG | 385 | 435 | 485 | 535 | 585 | 635 | 685 |
| E | 1070 | 1220 | 1370 | 1520 | 1670 | 1820 | 1970 |
| AG | 1125 | 1275 | 1425 | 1575 | 1725 | 1875 | 2025 |
| PM | 365 | 415 | 465 | 515 | 565 | 615 | 665 |
| D | 290 | 390 | 310 | 395 | 485 | 485 | 565 |
| D1 | 100 | 100 | 90 | 97,5 | 102,5 | 100 | 100 |
| D0 | 80 | 100 | 100 | 100 | 100 | 100 | 125 |
| TA | 74 | 80 | 86 | 92 | 98 | 104 | 110 |
| TG | 1135 | 1285 | 1435 | 1585 | 1735 | 1885 | 2035 |
| MG : | Mechanism Width |
| K : | Skate Distance |
| PG : | Panel Width |
| E : | Sill Lenght |
| AG : | Panel Open Width |
| PM : | Distance Panel-Mechanism |
| D : | Hole distance |
| D1 : | Hole distance |
| D0 : | Hole distance |
| TA : | Total Mass (kg) |
| TG : | Total Width |
DOOR OPTIONS
| Mechanism | Frame | Panel | |
| Electrostatic Painted | Applicable | Inapplicable | Applicable |
| Cover with Stainless | Inapplicable | Inapplicable | Applicable |
| Galvanized | Applicable | Inapplicable | Inapplicable |
SILL OPTIONS

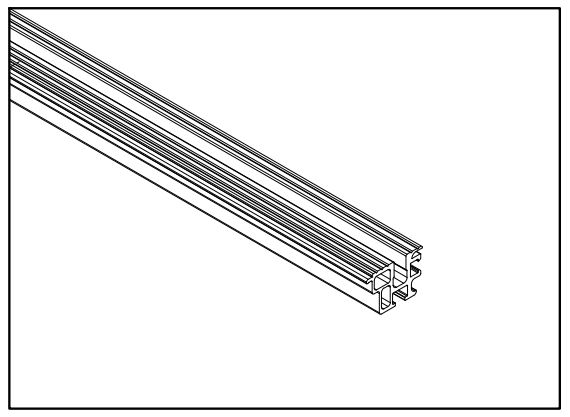

Standard Aluminium Sill for Car Door

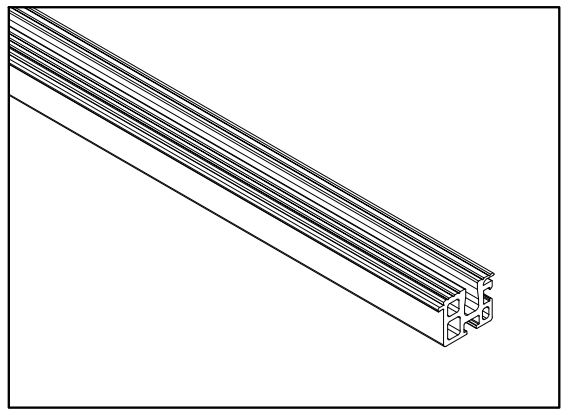

Strengthened Aluminium Sill for Car Door

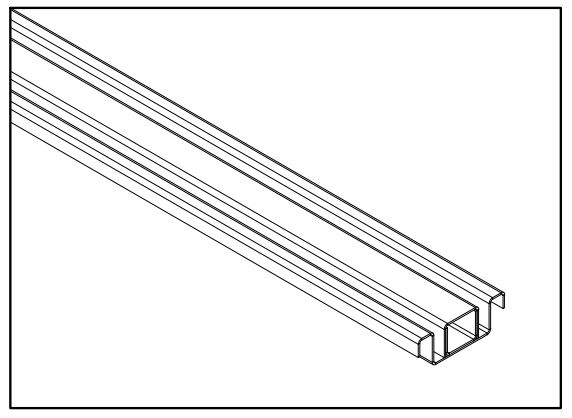

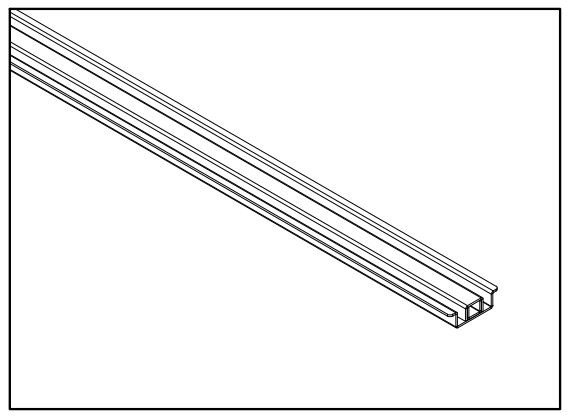

Stainless Sill for Car Door
