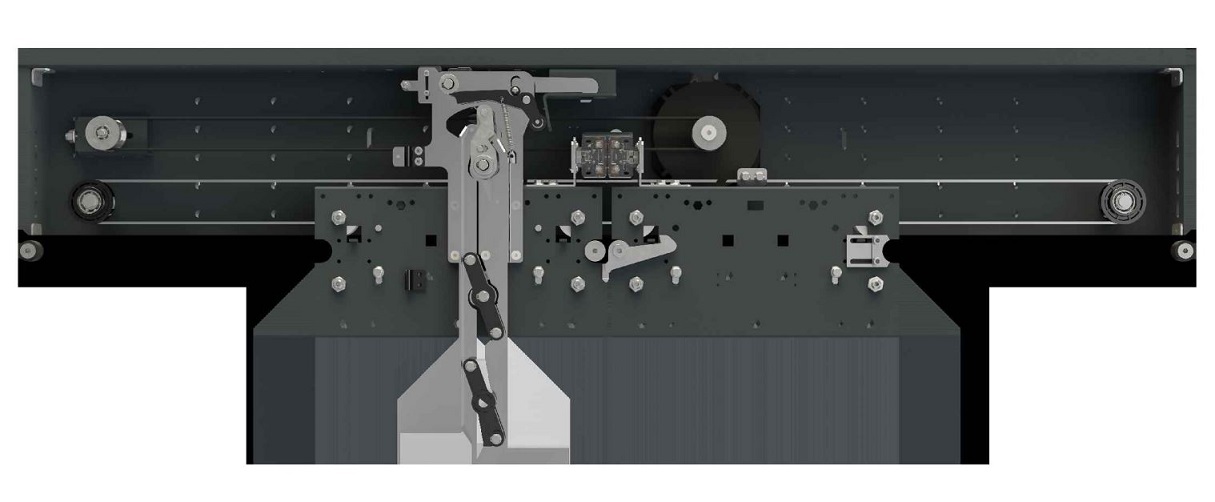

CENTRAL MULTICAR CAR DOORS
DIAGRAM
*** In case Net Clear Opening exceeds 1000 mm it can also work with C4P
PRODUCTION RANGE
Clear Opening | Clear Height |
||
| Minimum | Maximum | Minimum | Maximum |
| 700 | 1300 | 2000 | 2300 |
CAR DOOR CERTIFICATE
Detail of Certificate | Standards of reference | Certificate No |
| Pendulum test | EN81-20 | EN81-50 | NL16-400-1002-061-18 |
| Lock mechanism | EN81-20 | EN81-50 | 20-IS-0536-TAT-22-COC-3540 |

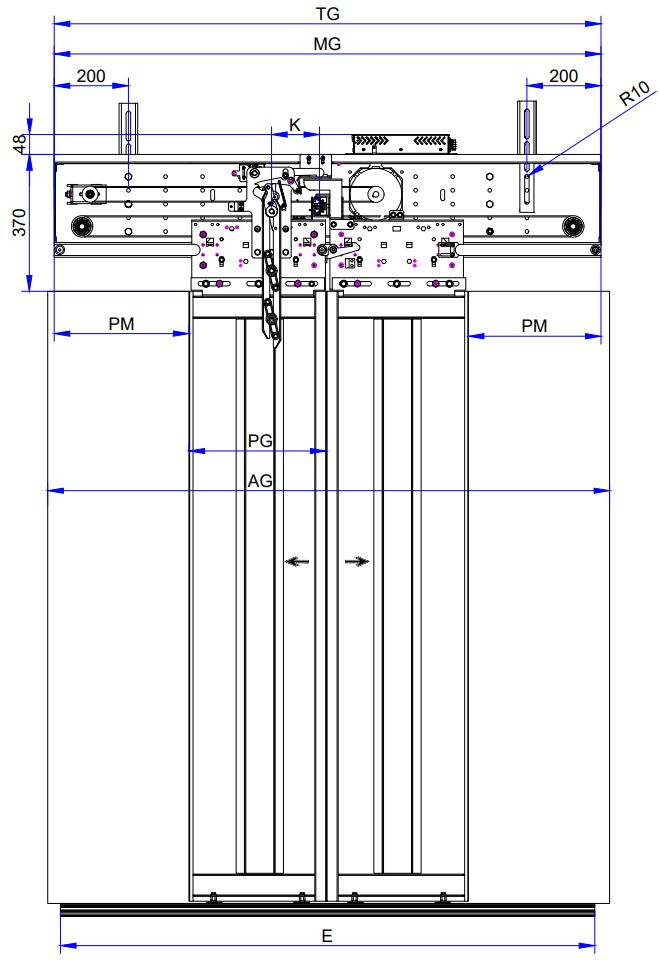

PLANE
FEATURES
| Clear Opening | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 |
| MG | 1474 | 1674 | 1874 | 2074 | 2274 | 2474 | 2674 |
| K | 138,5 | 138,5 | 138,5 | 138,5 | 138,5 | 138,5 | 138,5 |
| PG | 381 | 431 | 481 | 531 | 581 | 631 | 681 |
| E | 1440 | 1640 | 1840 | 2040 | 2240 | 2440 | 2640 |
| AG | 1485 | 1685 | 1885 | 2085 | 2285 | 2485 | 2685 |
| PM | 362 | 412 | 462 | 512 | 562 | 612 | 662 |
| D | 100 | 120 | 110 | 130 | 150 | 140 | 160 |
| D1 | 474 | 554 | 594 | 634 | 674 | 674 | 674 |
| D0 | 100 | 120 | 110 | 130 | 150 | 140 | 160 |
| TA | 79 | 85 | 91 | 97 | 103 | 109 | 115 |
| TG | 1474 | 1674 | 1874 | 2074 | 2274 | 2474 | 2674 |
| MG : | Mechanism Width |
| K : | Skate Distance |
| PG : | Panel Width |
| E : | Sill Lenght |
| AG : | Panel Open Width |
| PM : | Distance Panel-Mechanism |
| D : | Hole distance |
| D1 : | Hole distance |
| D0 : | Hole distancei |
| TA : | Total Mass (kg) |
| TG : | Total Width |
DOOR OPTIONS
| Mechanism | Frame | Panel | |
| Electrostatic Painted | Applicable | Inapplicable | Applicable |
| Cover with Stainless | Inapplicable | Inapplicable | Applicable |
| Galvanized | Applicable | Inapplicable | Inapplicable |
SILL OPTIONS

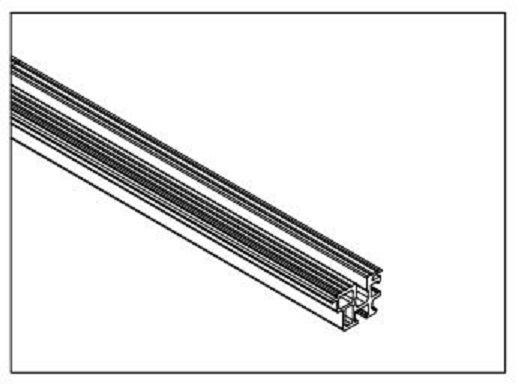

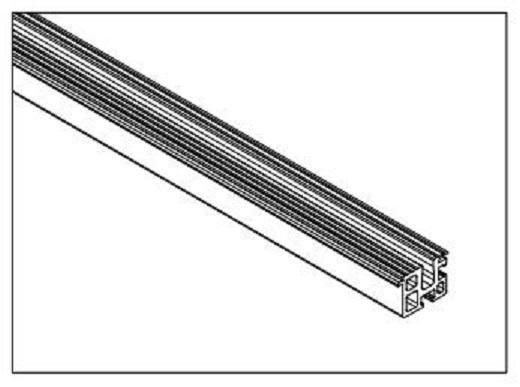

Standard Aluminium Sill for Landing Door
